Stop & Go with RV3

This tutorial shows how to use the Stop & Go with RV3 function in Emlid Studio to get separate points. Use Stop & Go with RV3 when you need to get separate points from the track of measurements obtained without a real-time correction link between the base and the rover.

Getting started#

To get separate points, you will need the following:

  • a RINEX observation file from the base
  • a RINEX observation file from the rover
  • a RINEX navigation file from the base or from the rover
  • a CSV file from ReachView 3
note

If you recorded raw data in the UBX format or got corrections from the NTRIP service in the RTCM3 format, Emlid Studio will automatically convert them to RINEX using the background conversion feature.

Workflow#

Emlid Studio calculates all solutions using RINEX files from the base and the rover and averages them over time spans using a CSV file from ReachView 3 to provide separate points.

note

Tick the required data quality to choose solutions to be averaged. If you want to get cm-accurate results, tick Fix only.

To process the data and get separate points, follow the steps below:

tip

To add a file, simply drag and drop it from your desktop.

  1. Add RINEX files from the base and the rover as described here

  2. Add a CSV file from ReachView 3

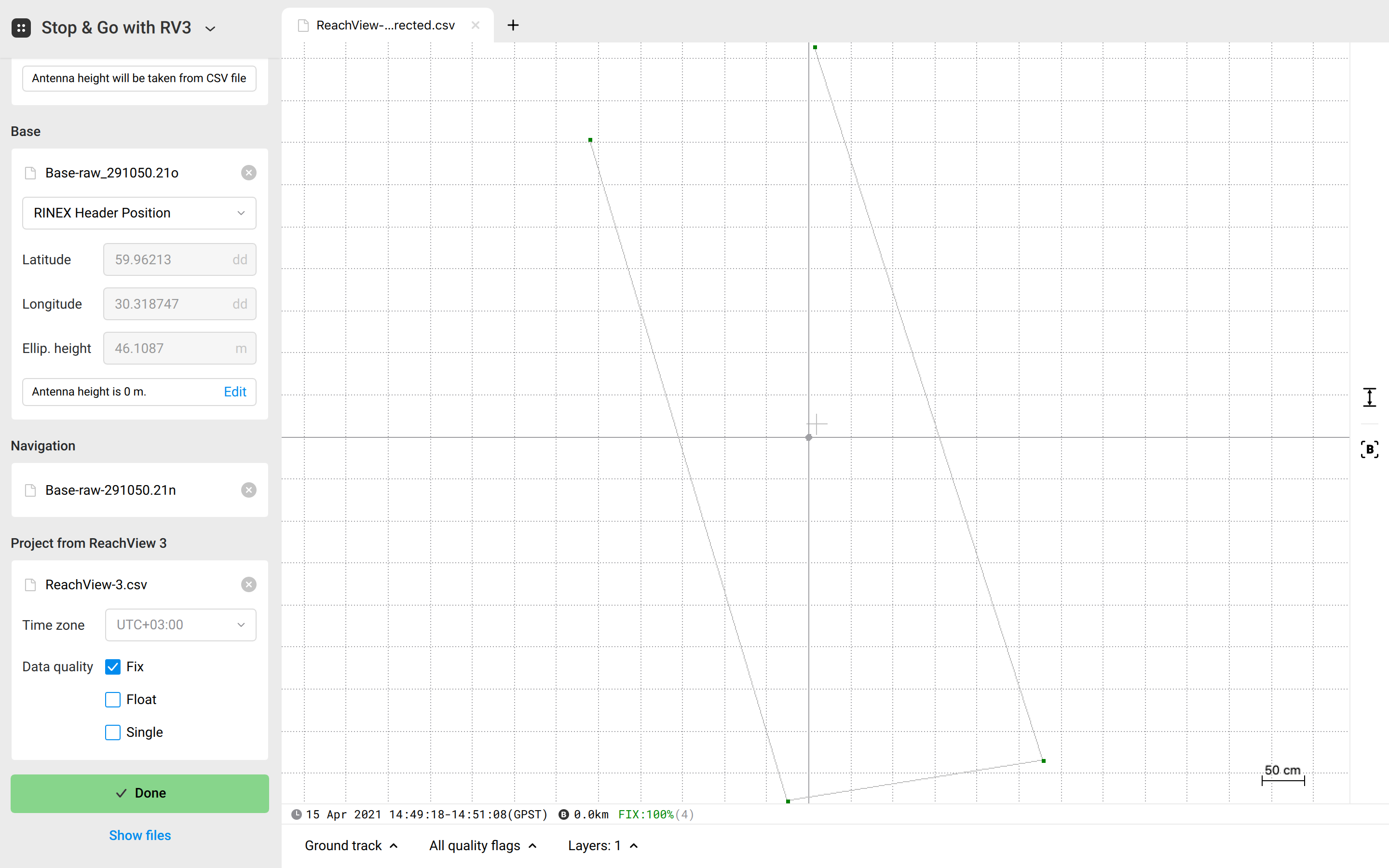

  3. Click Process. The result will be shown on the plot.


note

Click the Show result files button to get the resulting CSV file. Emlid Studio creates a copy of the CSV file named “name of the file_corrected.csv".
